Rulmanlar/Bilyalı Rulmanlar/Eğik Bilyalı Rulmanlar
product picture

3003-2RS

Double row angular contact ball bearings excel in applications requiring high radial and axial load capacity, low friction even at high speeds, and long service life. The angular orientation of the raceways in both the inner and outer rings allows for simultaneous accommodation of both radial and axial loads. Manufactured to exacting tolerances, these bearings offer adjustable preload for improved positioning and extended service life.

Отправьте нам ваш заказ

Продукт 3003-2RS
Техническая спецификации
technical image onetechnical image two

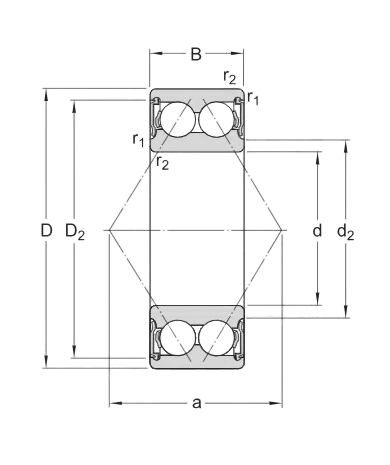

Размеры

d17 mmДиаметр отверстия
D35 mmНаружный диаметр
B14 mmШирина

Свойства

Тип отверстияCylindrical
СепараторÇelik
УплотнениеHer iki tarafta temaslı kapak

Представление

Номинальная динамическая грузоподъемностьC7,500 N
Номинальная статическая грузоподъемностьC05,000 N
Предельная скорость10200 r/min

Класст очности

Класст очностиP0
Радиальный зазорC0

Масса

Нетто-масса продукта0.06 kg
